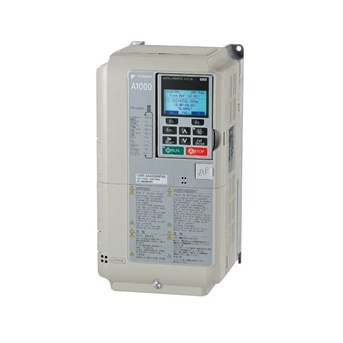

YASKAWA A1000 CIMR-AB4A0005FBA Inverter 3 PHASE 2.2KW 400V

description:3/4 - 1000 HPThe A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP...
BASIC INFO
YASKAWA A1000 CIMR-AB4A0005FBA Inverter 3 PHASE 2.2KW 400V


The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.



Highlights:

Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
High Slip Braking reduces installation cost and the need for dynamic braking resistors
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
DriveWizard computer software and Application Sets for easy configuration.
Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
Removable terminal board with configuration storage provides convenience of configuration backup.
Made with RoHS compliant materials.
Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.
Kinetic Energy Braking allows drive to remain in control during momentary power losses.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Flange version provides NEMA 12 backside integrity when mounting with heatsink external.




A1000 Series
CIMR-AB4A0002FBA 3 Phases 400V 0.75KW
CIMR-AB4A0004FBA 3 Phases 400V 1.5KW
CIMR-AB4A0005FBA 3 Phases 400V 2.2KW
CIMR-AB4A0007FBA 3 Phases 400V 3KW
CIMR-AB4A0009FBA 3 Phases 400V 3.7KW
CIMR-AB4A0011FBA 3 Phases 400V 5.5KW
CIMR-AB4A0018FBA 3 Phases 400V 7.5KW
CIMR-AB4A0023FBA 3 Phases 400V 11KW
CIMR-AB4A0031FBA 3 Phases 400V 15KW
CIMR-AB4A0038FBA 3 Phases 400V 18.5KW
CIMR-AB4A0044FBA 3 Phases 400V 22KW
CIMR-AB4A0058ABA 3 Phases 400V 30KW
CIMR-AB4A0072ABA 3 Phases 400V 37KW
CIMR-AB4A0088ABA 3 Phases 400V 45KW
CIMR-AB4A0103ABA 3 Phases 400V 55KW
CIMR-AB4A0139ABA 3 Phases 400V 75KW
CIMR-AB4A0165ABA 3 Phases 400V 90KW
CIMR-AB4A0208ABA 3 Phases 400V 110KW
CIMR-AB4A0250ABA 3 Phases 400V 132KW
CIMR-AB4A0296ABA 3 Phases 400V 160KW
CIMR-AB4A0362ABA 3 Phases 400V 185KW
CIMR-AB4A0414ABA 3 Phases 400V 220KW
CIMR-AB4A0515ABA 3 Phases 400V 315KW
CIMR-AB4A0675ABA 3 Phases 400V 355KW

CIMR-AB2A0004FAA 3 Phases 200V 0.4KW
CIMR-AB2A0006FAA 3 Phases 200V 0.75KW
CIMR-AB2A0008FAA 3 Phases 200V 1.1KW
CIMR-AB2A0010FAA 3 Phases 200V 1.5KW
CIMR-AB2A0012FAA 3 Phases 200V 2.2KW
CIMR-AB2A0018FAA 3 Phases 200V 3KW
CIMR-AB2A0021FAA 3 Phases 200V 3.7KW
CIMR-AB2A0030FAA 3 Phases 200V 5.5KW
CIMR-AB2A0040FAA 3 Phases 200V 7.5KW
CIMR-AB2A0056FAA 3 Phases 200V 11KW
CIMR-AB2A0069FAA 3 Phases 200V 15KW
CIMR-AB2A0081FAA 3 Phases 200V 18.5KW
CIMR-AB2A0110AAA 3 Phases 200V 22KW
CIMR-AB2A0138AAA 3 Phases 200V 30KW
CIMR-AB2A0169AAA 3 Phases 200V 37KW
CIMR-AB2A0211AAA 3 Phases 200V 45KW
CIMR-AB2A0250AAA 3 Phases 200V 55KW
CIMR-AB2A0312AAA 3 Phases 200V 75KW
CIMR-AB2A0360AAA 3 Phases 200V 90KW
CIMR-AB2A0415AAA 3 Phases 200V 110KW


---------------------------------------
