Honeywell BW GasAlertMicroClip XT Multi 4-Gas Detector Anayz

description: 4-Gas Anayzer H2S CO O2 combustibles....

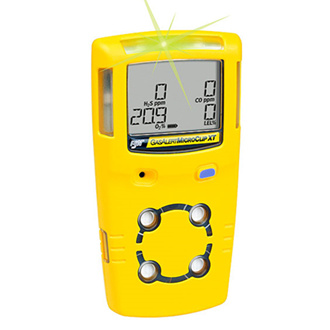

Honeywell BW Technologies GasAlertMicroClip XT Multi Gas Detector 4-Gas Anayzer H2S CO O2 combustibles

Multi-gas made simple The slim and compact GasAlertMicroClip XT provides affordable protection from atmospheric hazards. This multi-gas detector offers continuous visual confirmation of detector operation and compliance with the IntelliFlash™ feature and simple onebutton operation offers ultimate ease of use and significantly reduces time spent training the user. The GasAlertMicroClip XT is fully compatible with BW’s MicroDock II automatic test and calibration system.
Continuous visual compliance with IntelliFlash

  • Multi-gas versatility with one-button simplicity
  • Incredibly thin and lightweight, making it comfortable to wear

Standard Features
  • Continuous LCD shows real-time gas concentrations
  • Compact and lightweight design makes it comfortable to wear
  • Water-resistant
  • Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
  • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
  • Bright wide-angled visual alarm bars
  • Built-in concussion-proof boot

Additional Features
  • IntelliFlash verifi es operation and compliance to both the user and supervisor
  • Tamper-proof, one button operation
  • Compatible with the Sampler motorized remote sampling pump
  • Equipped with internal vibrating alarm for high noise areas
  • Powered by a lithium polymer battery
  • Multi-language support in English, French, German, Spanish and Portuguese
  • Conveniently manage your fl eet using Fleet Manager II

GasAlertMicroClip XT Specifications:
Size 4.4 x 2.4 x 1.1 in. / 11.3 x 6.0 x 2.9 cm
Weight 6 oz. / 171 g
Temperature -4 to +122°F / -20 to +50°C
Humidity 0% - 95% RH (non-condensing)
Alarms - Visual, vibrating, audible (95dB)
- Low, High, STEL, TWA, OL (over limit)
Tests Audible/visual alarms on activation, sensors, battery and circuitry (continuous)
Pump Compatible with the Sampler motorized sampling pump
Typical battery life 10 hours (typical); recharges in less than 4 hours
User options Confidence beep, Set STEL interval, Sensor on/off, Latching alarms, Safe display mode, Stealth mode, Calibration lock, Auto zero on start up, O2 auto calibration on start up, Set bump test interval, IntelliFlash interval, Combustible gas measurement (% LEL or % by volume methane), User-settable calibration gas level, Force bump test when overdue, Force calibration when overdue, Low alarm acknowledge, Language choices (five), Set custom start up message
Warranty Full 2 year warranty including all sensors

Sensor Specifications:
Gas Measuring Range Resolution
H2S 0-100 ppm 1 ppm
CO 0-500 ppm 1 ppm
O2 0-30.0% 0.1%
Combustible gases 0-100% LEL
0-5.0% v/v


GasAlertMicroClip XT (Yellow) Order Number
4-Gas Detector
%LEL, O2, H2S, CO    MC2-XWHM-Y-CN
3-Gas Detector
%LEL, O2, H2S  MC2-XWH0-Y-CN
O2, H2S, CO   MC2-X0HM-Y-CN
2-Gas Detector
%LEL, O2   MC2-XW00-Y-CN
%LEL, H2S  MC2-0WH0-Y-CN
%LEL, CO   MC2-0W0M-Y-CN
H2S, CO  MC2-00HM-Y-CN
O2, H2S  MC2-X0H0-Y-CN
O2, CO  MC2-X00M-Y-CN
1-Gas Detector
%LEL  MC2-0W00-Y-CN
O2  MC2-X000-Y-CN
H2S   MC2-00H0-Y-CN
CO  MC2-000M-Y-CN
