Fluke 753 Documenting Process Calibrator

description:The 753 does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held calibration tool. For documentation, the 753 automates calibration procedures and captures y...
BASIC INFO

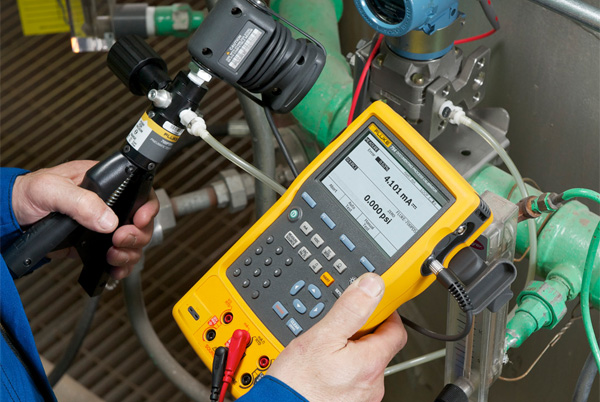

Fluke 753 Documenting Process Calibrator

The 753 does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held calibration tool. For documentation, the 753 automates calibration procedures and captures your data.

Includes:

BC7240 battery charger
Li-on BP7240 battery pack
DPCTrack 2™ Sample Software
Instruction manual
NIST-traceable calibration report and data
Three sets of TP220 test probes with three sets of “extended tooth" alligator clips
Two sets AC280 hook clips
C799 Soft Field Case
USB communication cable

Automated Procedures

Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 750 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.

Custom Units

Enable you to map one unit to another, such as mV to ºC or ºF. Allows you to use the Fluke 750 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.

User-entered Values

Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.

Limit Switch Calibration

Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.

Differential Pressure Flow Instrument Calibration

Routines use a square root function to directly calibrate DP flow instruments.

Truly hand-held

Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable Li-ion battery pack.

Rugged and reliable

Count on Fluke's rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments.

Bright white display

Lets you read your results in any kind of light. Backlight has three (3) settings.

Soft keys

Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

Three operating modes

Measure, Source, or simultaneous Measure/Source, - enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool.

Multi-lingual interface

Displays instructions in English, French, German, Spanish, and Italian.

Built-in algebraic calculator

With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There's no need to carry a pencil and paper or a separate calculator.

Programmable measurement delay

Inside automated procedures permits calibrating instruments that respond slowly.





mA Loop calibration and test tools

Model Description
Fluke 754 Documenting Process Calibrator-HART
Fluke 753 Documenting Process Calibrator
Fluke 726 Precision Multifunction Process Calibrator
Fluke 725 Multifunction Process Calibrator
Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator
Fluke 789 ProcessMeter
Fluke 719 Pressure Calibrator
Fluke 709 Precision Loop Calibrator
Fluke 709H Precision Loop Calibrator with HART Communications / Diagnostics
Fluke 707 Loop Calibrator with Quick Click Knob
Fluke 707Ex Intrinsically Safe Loop Calibrator »
Fluke 715 Volt/mA Calibrator »
Fluke 705 Loop Calibrator »
Fluke 771 Milliamp Process Clamp Meter »
Fluke 772 Milliamp Clamp Meter »
Fluke 787 ProcessMeterTM »
Fluke 773 Milliamp Process Clamp Meter »
