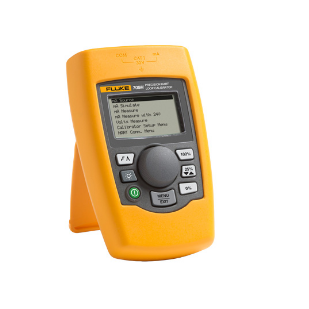

Fluke 709H Precision Loop Calibrator with HART Communications / Diagnostics
The Fluke 709H mA loop calibrator is designed to save time and produce high-quality results. The 709H has HART communication and supports a select set of the HART universal and common practice commands.
Includes:
754-8016 Alligator Clip Set
75X-8014 Stackable Lead Set
TP220-4201 Test Probes
AC280-5001 SureGrip Hook Clips
Soft Case
Six AAA Batteries (Installed)
Product Manual CD-ROM
Quick Reference Guide
Safety Information

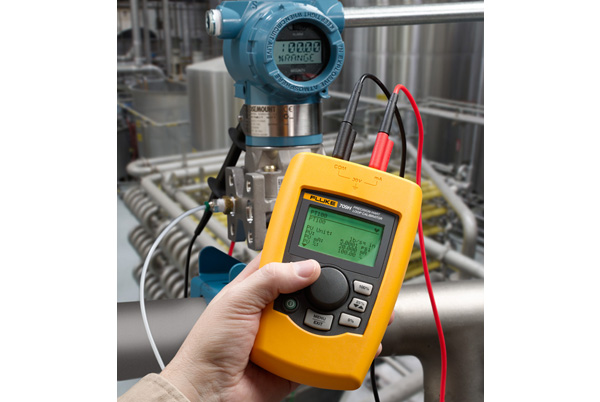

The Fluke 709H mA loop calibrator is designed to save time and produce high-quality results. The 709H offers HART communication and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication tool.
In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the calibration on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. Fluke 709H will allow virtually any technician to service and support HART devices.
mA Loop calibration and test tools
| Model | Description |
| Fluke 754 | Documenting Process Calibrator-HART |
| Fluke 753 | Documenting Process Calibrator |
| Fluke 726 | Precision Multifunction Process Calibrator |

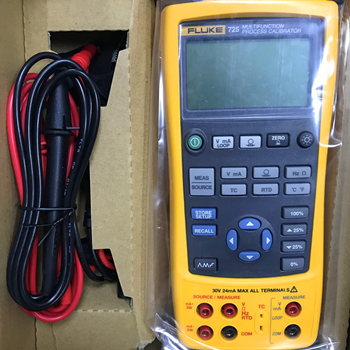

| Fluke 725 | Multifunction Process Calibrator |
| Fluke 725Ex | Intrinsically Safe Multifunction Process Calibrator |
| Fluke 789 | ProcessMeter |
| Fluke 719 | Pressure Calibrator |
| Fluke 709 | Precision Loop Calibrator |
| Fluke 709H | Precision Loop Calibrator with HART Communications / Diagnostics |
| Fluke 707 | Loop Calibrator with Quick Click Knob |
| Fluke 707Ex | Intrinsically Safe Loop Calibrator » |
| Fluke 715 | Volt/mA Calibrator » |
| Fluke 705 | Loop Calibrator » |
| Fluke 771 | Milliamp Process Clamp Meter » |
| Fluke 772 | Milliamp Clamp Meter » |
| Fluke 787 | ProcessMeterTM » |
| Fluke 773 | Milliamp Process Clamp Meter » |
