Fluke 705 Loop Calibrator 0-28 V,. 025% Accuracy

description:Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops...
Fluke 705 Loop Calibrator 0-28 V,. 025% Accuracy

Key features
Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
Provides simultaneous mA and % readout for quick, easy interpretation of readings.
Delivers mA accuracy of 0.02%
Features push button 25% steps for fast, easy linearity checks

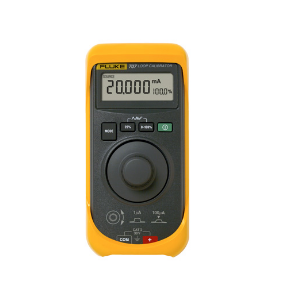

Product overview: Fluke 705 Loop Calibrator
Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops
The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:
mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Includes “span check” for fast confirmation of zero and span.
Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
Runs on a single 9 V battery that is easily changed without breaking the calibration seal
Offers 0 - 20 mA or 4 - 20 mA default start up modes
Comes with a protective yellow holster with test lead storage and a three year warranty
And you get all of that in a compact case with a separate protective holster and a three year warranty.

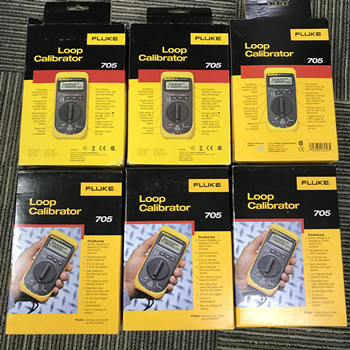

Fluke 705Fluke 705 Loop Calibrator Includes:
AC70A Alligator Clips
C10 protective yellow holster with Flex-Stand™
Instruction sheet
TL75 safety-designed test lead set
NIST- traceable calibration report and data

Current measurement Range 0 to 24 mA
Resolution 0.001 mA
Accuracy 0.02% Rdg + 2 LSD
Current sourcing Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.025% Rdg + 2 LSD
Drive capability 1000 Ω @ 24 mA
Current simulation Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.025% Rdg + 2 LSD
Ext. loop voltage requirement 12-30 V
Loop power While measuring mA, 24 V
Voltage measurement Range 0 to 28 V DC
Resolution 1 mV
Accuracy 0.025% Rdg + 2 LSD
Environmental Specifications
Operating temperature -10°C to 55°C
Storage temperature -40°C to 60°C
Humidity (without condensation) 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient -10°C to 18°C, 28°C to 55°C, ±.005% of range per°C
Safety Specifications
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage 30 V
Mechanical and General Specifications
Size 152 x 70 x 41 mm
Weight 340 g
Batteries One 9 V battery
Warranty Three years
Shock and vibration per MIL-T-28800 for a Class 2 Instrument
Display current and % of span Yes
Auto step, auto ramp Yes
Span check Yes
