BASIC INFO
Fluke 787 ProcessMeterTM
Fluke 787 ProcessMeter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone.
Includes:
AC70A Alligator Clips
C81Y Protective Yellow Holster with Flex-Stand™
One 9V Alkaline Battery
Quick Reference Guide
TL75 Safety-Designed Test lead Set
A maintenance and calibration tool that will be at home in every instrumentation technician's tool box,the Fluke 787 ProcessMeter™ combines a DMM and a loop calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop current with 0.05% accuracy and 1 microamp resolution.
Want a built in 24-Volt loop supply and 250 Ω HART resistor? Consider the Fluke 789.

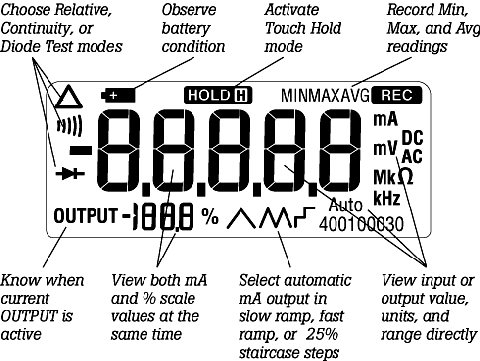

DMM and loop calibrator in one tool
Clear LCD with backlight; 4,000 counts (30,000 counts for DC current)
Externally accessible battery for easy battery changes.
1000 V overload protection on V, ohms, frequency.
150 V overload protection on mA, backed up by 440 mA 1000V fuse.
25% Manual Step plus Auto Step and Auto Ramp on mA output.
Fluke combined the DMM you trust with the loop calibrator you need.
The Fluke 787 ProcessMeter™ puts a complete troubleshooting solution in the palm of your hand. Get in touch with more information, faster and easier with the newest member of the Fluke 80 Series, the 787 ProcessMeter. The 787 gives you the measurement capabilities you expect from our rugged, reliable DMMs plus the ability to source, simulate, or measure dc current with 1 microamp resolution and accuracy of 0.05%. Put it all together and you have the ideal tool for troubleshooting and calibrating current loop applications. So if you're tired of always tracking down a calibrator, lugging around two tools and switching back and forth, get the single best solution for doubling your power.
Precision 1000 V, 440 mA digital multimeter
Measure AC and DC volts, AC and DC current, resistance, continuity, and frequency
0.1% DC voltage accuracy
0.05% DC current accuracy, 1 ‘A resolution to 30 mA
Simultaneous mA and % of scale readout
True rms AC voltage measurement to 1 kHz
Frequency measurement to 20 kHz
Min/Max/Average/TouchHold/Relative modes
Diode test and continuity beeper
DC current source/loop calibrator
20 mA current source/simulator
Simultaneous mA and % of scale readout
Manual step (25%, coarse, fine) plus auto step and auto ramp
Safety Conformance
Meets 1000 volt EN61010-1 CAT III standards.
Contact us
Tel:+86 027-85880977
Email: vicky@hkxytech.com
| Model | Item | Description |
| FLUKE-773CHN | 3456293 | MILLIAMP PROCESS CLAMP METER, CHINA |
| FLUKE-789 | 1633984 | PROCESSMETER |
| FLUKE-707 | 1617262 | LOOP CALIBRATOR |
| FLUKE-709H | 4234361 | FLUKE-709H,LOOP CALIBRATOR, W/ HART |
| FLUKE-787 | 619913 | PROCESSMETER |
| FLUKE-705 | 665091 | LOOP CALIBRATOR |
| FLUKE-709 | 4234350 | FLUKE-709,LOOP CALIBRATOR |
| FLUKE-712C | 4387878 | FLUKE-712C,RTD CALIBRATOR WITH LOOP POWER FOR CHINA MARKET |
| FLUKE-714C | 4387884 | FLUKE-714C,THERMOCOUPLE CALIBRATOR WITH LOOP POWER FOR CHINA MARKET |
| Fluke-719PRO 300G | 4353234 | FLUKE-719PRO-300G,ELECTRIC PRESSURE CALIBRATOR, 300 PSIG |
| FLUKE-700HTPK | 4124358 | HYDRAULIC TEST PUMP KIT, 0 TO 10000 PSI/700 BAR |
| FLUKE-750P06 | 4352349 | FLUKE-750P06,PRESSURE MODULE, 0 TO 100 (0 TO 7 BAR), (0 TO 700 KPA) |
| FLUKE-718 300G | 2547153 | PRESSURE CALIBRATOR 300 PSIG |
| Fluke-719PRO 150G | 4353229 | FLUKE-719PRO-150G,ELECTRIC PRESSURE CALIBRATOR, 150 PSIG |
