BASIC INFO

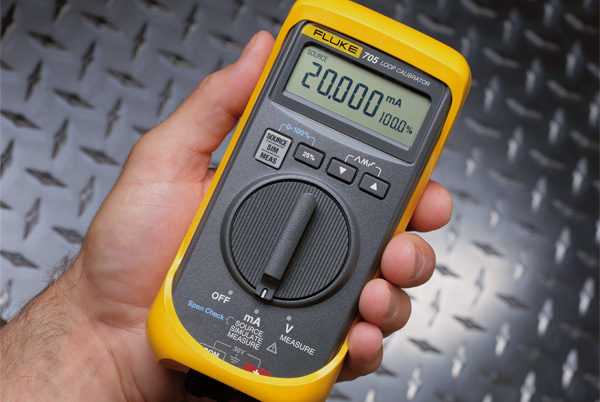

Fluke 705 Loop Calibrator
Loop Calibration - The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops.
Includes:
AC70A Alligator Clips
C10 protective yellow holster with Flex-Stand™
Instruction sheet
TL75 safety-designed test lead set
NIST- traceable calibration report and data
The Fluke 705 loop calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features:
mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Compact case with separate protective holster
Three year warranty
Low cost calibrator muscle.
For a powerful loop calibrator at a very affordable price, choose the Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:
A large display and simple, pushbutton interface for ease of use.
Simultaneous mA and % readout for quick, easy interpretation of readings.
mA accuracy of 0.02%
Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
"Span Check" for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
Single 9V battery that is easily changed.
0 - 20 mA or 4 - 20 mA default start up modes.
Safety conformance:
CSA C22.2 No. 1010.1:1992
